Ka-Band Choke Flange Feed Horn Antenna

This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0500GAIN-AA.
A 2D pattern measurement test is offered under service number FTA-0500PATT-AA.

CLICK HERE to read more about our antenna measurement capabilities.

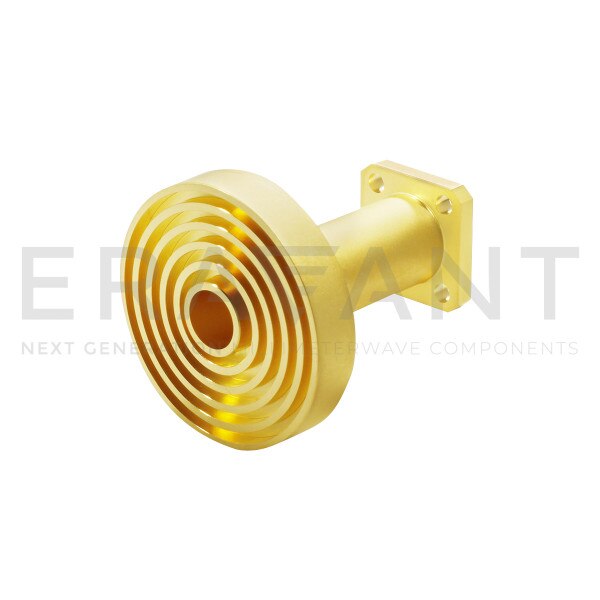

SAH-2434231060-328-S1 is a Ka-band choke flange feed horn antenna that operates from 24 to 42 GHz. The antenna offers a 10 dBi nominal gain, 60 degree typical half power beamwidth in both E and H planes, and -25 dB typical sidelobe level for E plane and -35 dB for H Plane, respectively. The choke flange feed horn is equipped with a 0.328" diameter circular waveguide with UG-599/U flange that supports both linear and circular polarized waveforms.
