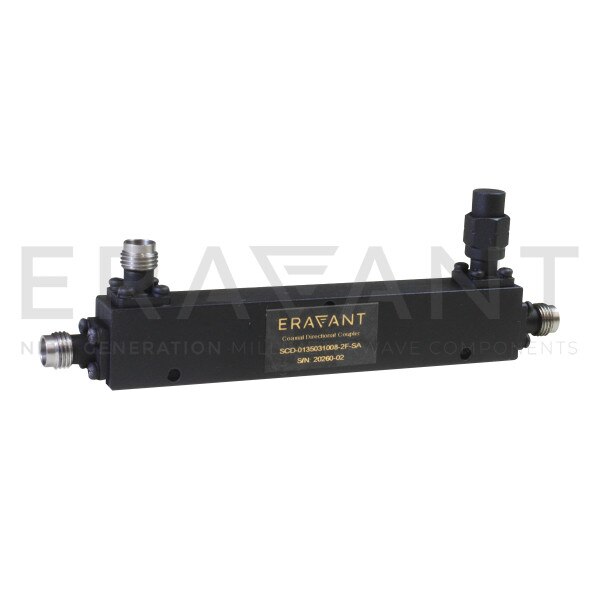

Coaxial Directional Coupler

10 dB Coupling, 1 to 67 GHz, 1.85 mm (F), 10 Watts
SKU:SCD-0136731008-VF-SA
Availability:6 to 8 Weeks ARO
SCD-0136731008-VF-SA is a 10 dB coaxial directional coupler that covers the frequency range of 1 to 67 GHz. The nominal insertion loss of the coupler is 4 dB and the coupling ripple is ± 2 dB. The directivity of the coupler is 8 dB. The RF connectors of the coupler are 1.85 mm female connectors. The power handling of the coupler is 10 watts maximum. Other configurations, such as different connectors for input and output, are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 1$5,150.00
2 - 2$4,892.50
3 +$4,647.88

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency1 GHz
Maximum Frequency67 GHz
Insertion Loss4.0 dB
Coupling10 dB
Power Handling10 Watts
Directivity8 dB
Port Return Loss10 dB
Impedance50 Ohms
RF Port1.85 mm Female
