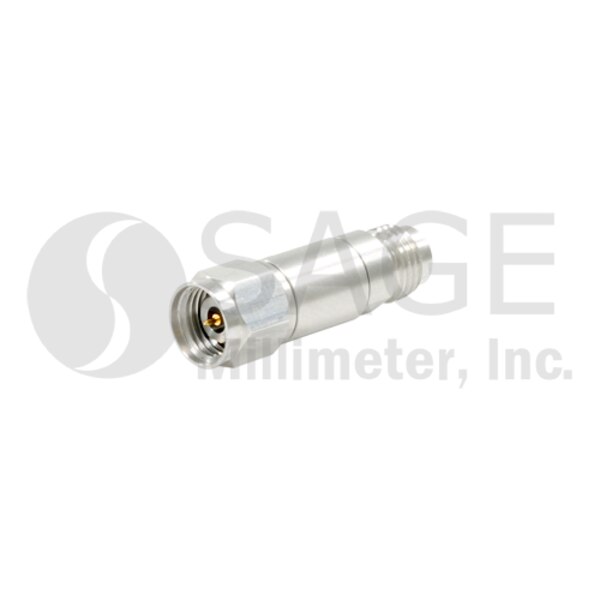

Coaxial Fixed Attenuator, Limited Run

10 dB Attenuation, 2.4 mm (M) to (F), DC to 50 GHz, 1 Watt
SKU:SCA-10-2M2F-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SCA-10-2M2F-S9 as an alternative solution. Read more about Limited Run Products here.

SCA-10-2M2F-S2 is a 10 dB coaxial attenuator that is used in millimeterwave systems and operates from DC to 50 GHz. The attenuator has a typical attenuation value of 10 dB across the frequency range. While the attenuator is designed and fabricated for full 2.4 mm coaxial band applications, the attenuation value of this model will have a wide range due to its broadband coverage. Various attenuation values are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 24$335.00
25 - 49$301.50
50 - 99$271.35

Bulk Pricing

Login to View Pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency50 GHz
Attenuation10 dB
Return Loss19 dB
Power Handling1 W
Connector 12.4 mm Male
Connector 22.4 mm Female
