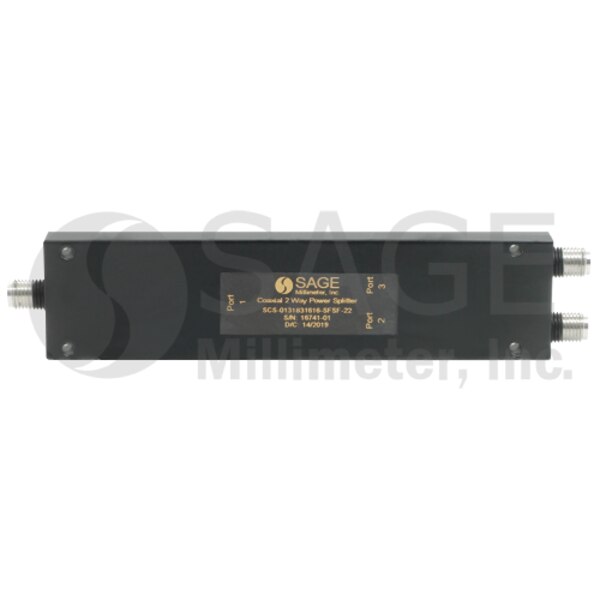

2-Way Coaxial Power Splitter

1 to 18 GHz, SMA (F)
SKU:SCS-0131831215-SFSF-22
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SCS-0131831215-SFSF-22 is a coaxial 2-way power splitter with a typical insertion loss of 1.2 dB at each output port and a typical isolation of 16 dB across the frequency range of 1 to 18 GHz. The power splitter has a nominal power handling of 30 W (CW) and a typical amplitude unbalance of ±0.4 dB. The return loss for all ports is 13 dB typical. The RF connectors of the power splitter are female SMA connectors.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$280.00
25 - 49$252.00
50 +$226.80

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency1 GHz
Maximum Frequency18 GHz
Ways2
Insertion Loss1.6 dB
Port Isolation15 dB
Return Loss13 dB
Impedance50 Ohms
RF ConnectorsSMA (F)
