WR-28 Waveguide Sector Antenna

0 dBi Gain, 120° Azimuth, 30 to 40 GHz, Ka-Band
SKU:SAE-3034030060120-28-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This model may be purchased with optional antenna testing services.
A gain measurement test is offered under service number FTA-0400GAIN-ODA.
A 2D pattern measurement test is offered under service number FTA-0400PATT-ODA.

CLICK HERE to read more about our antenna measurement capabilities.

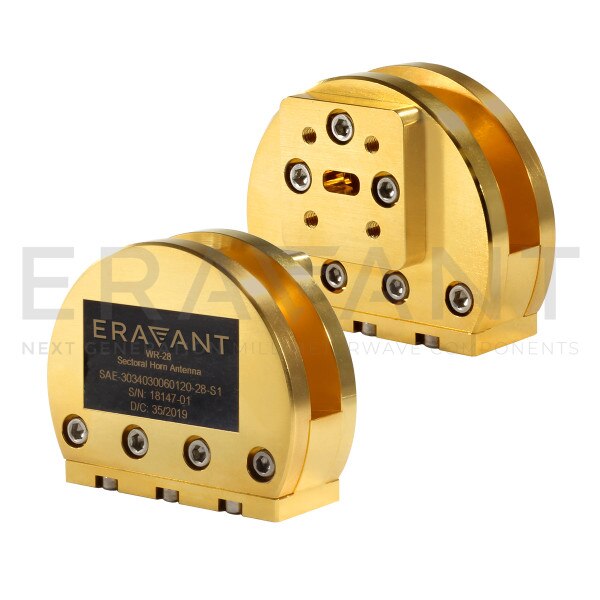

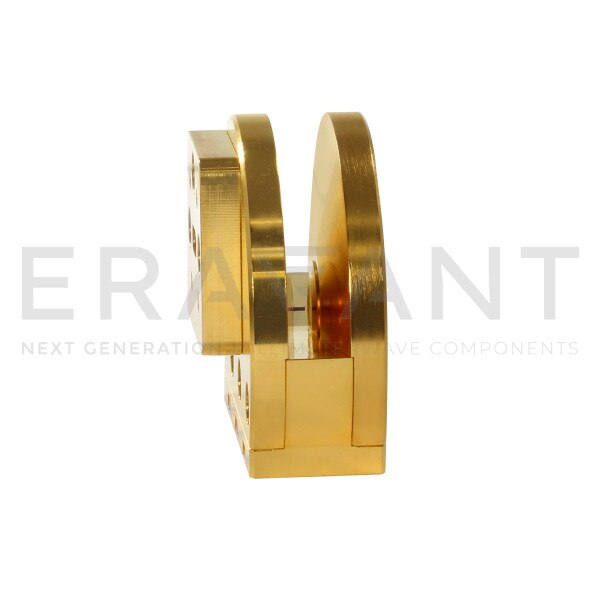

SAE-3034030060120-28-S1 is a Ka-band sector antenna that covers the frequency range from 30 to 40 GHz. This vertically polarized antenna offers 120 degrees azimuth coverage with 0 dBi gain and ±3 dB gain flatness crosses the bandwidth. The antenna features a half power beamwidth of 60 degrees in the vertical direction. The RF interface port of the antenna is WR-28 waveguide with UG-599/U-M flange. Another antenna port configuration, such as 2.92 mm (K) coaxial interface is offered under model number, SAE-30340360120-KF-S1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency30 GHz
Maximum Frequency40 GHz
Gain0 dBi
Azimuth120°
3 dB Beamwidth, Vertical60°
Return Loss10 dB
InputWR-28 Waveguide
