Broadband Absorptive SP4T PIN Diode Switch

0.5 to 43 GHz, 60 dB Isolation, 2.92 mm (F)
SKU:SK4-0524335060-KFKF-A3
Availability:1 Week ARO

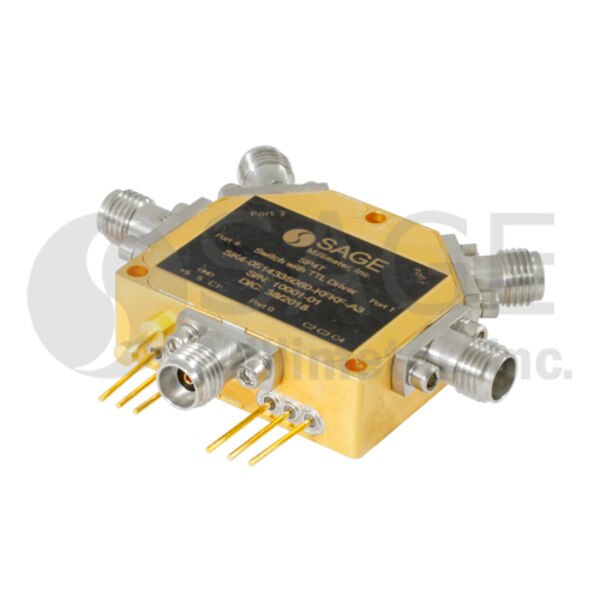

SK4-0524335060-KFKF-A3 is an absorptive PIN diode based, single pole, four throw (SP4T) switch with a TTL driver that operates between 500 MHz and 43 GHz. This model offers a typical insertion loss of 5 dB and 60 dB port-to-port isolation with a switching speed no slower than 100 nanoseconds. The switch has female K connectors for all RF ports and solder pins for DC bias and TTL control.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$4,250.00
3 - 4$4,037.50
5 +$3,835.63

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency0.5 GHz
Maximum Frequency43 GHz
Insertion Loss5.0 dB
Isolation60 dB
Power Handling-
Bias±5 VDC/ 100/50 mA
Switching Speed100 ns
Switch TypeAbsorptive
RF Port2.92 mm (F)
