Absorptive SP8T PIN Diode Switch

0.5 to 40 GHz, 60 dB Isolation, 2.92 mm (F)
SKU:SK8-0524036560-KFKF-A9

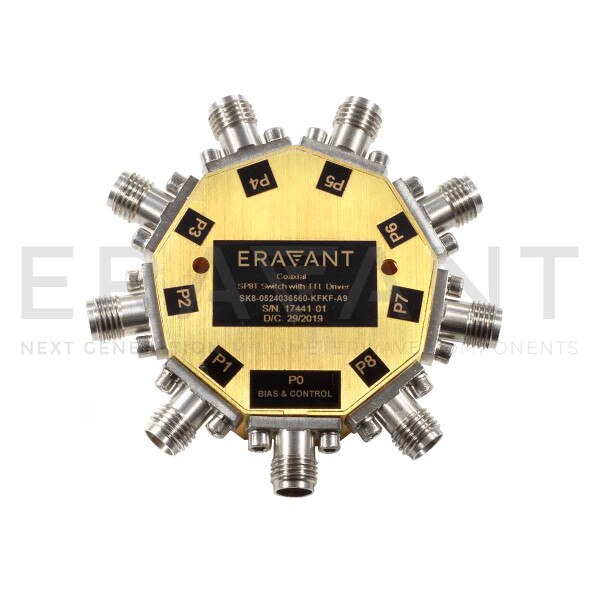

SK8-0524036560-KFKF-A9 is an absorptive PIN diode based, single pole, eight throw switch with a TTL driver that operates between 0.5 and 40 GHz. The switch requires a separate -5 V and +5 V biasing in addition to the 3-bit TTL control. This model offers a small form factor, typical 6.5 dB insertion loss, and 50 dB minimum isolation with a switching speed up to 50 nanoseconds. The switch has female K connectors for all RF ports and Micro-D15 socket for bias and TTL control.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $4,650.00
3 - 4 $4,417.50
5 - 9 $4,196.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency0.5 GHz
Maximum Frequency40 GHz
Insertion Loss6.5 dB
Isolation60 dB
Input RF Power+23 dBm
Switching Speed100 ns
Switch TypeAbsorptive
RF Port2.92 mm (F)
