Broadband Low Noise Amplifier

0.3 to 20 GHz, 15 dB Gain, 3 dB Noise Figure, SMA (F)
SKU:SBL-0322031530-SFSF-E3
Availability:IN STOCKPlease contact us if you need more units than what is available online.

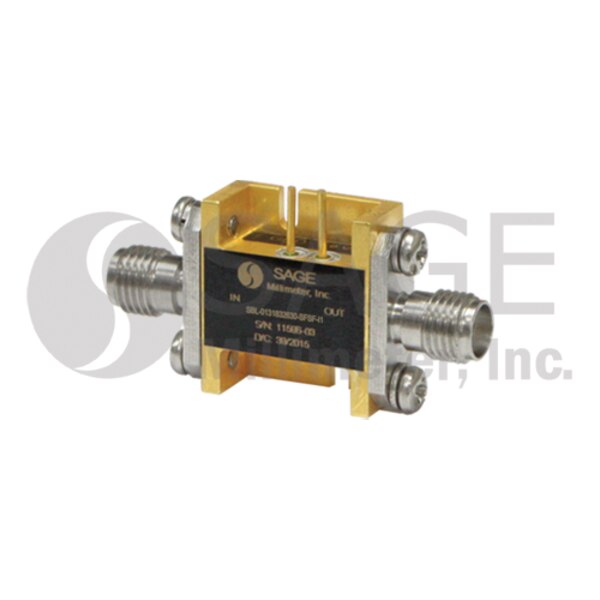

SBL-0322031530-SFSF-E3 is a low noise amplifier with a typical small signal gain of 15 dB and a nominal noise figure of 3 dB across the frequency range of 0.3 to 20 GHz. The typical port return losses are 10 dB. The DC power requirement for the amplifier is +12 VDC/70 mA. The output P1dB is +10 dBm. The RF connectors are both female SMA connectors. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 4 $1,750.00
5 - 9 $1,575.00
10 - 24 $1,417.50

Bulk Availability

QuantityAvailability
1 - 5In Stock

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency0.3 GHz
Maximum Frequency20 GHz
Gain15 dB
Noise Figure3.0 dB
P1dB+10 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+12 VDC/70 mA
RF Input/OutputSMA (F)
