SMA (F) Bias Tee

0.1 MHz to 18 GHz, 500 mA DC Current, 25 dB Isolation
Availability:IN STOCKPlease contact us if you need more units than what is available online.

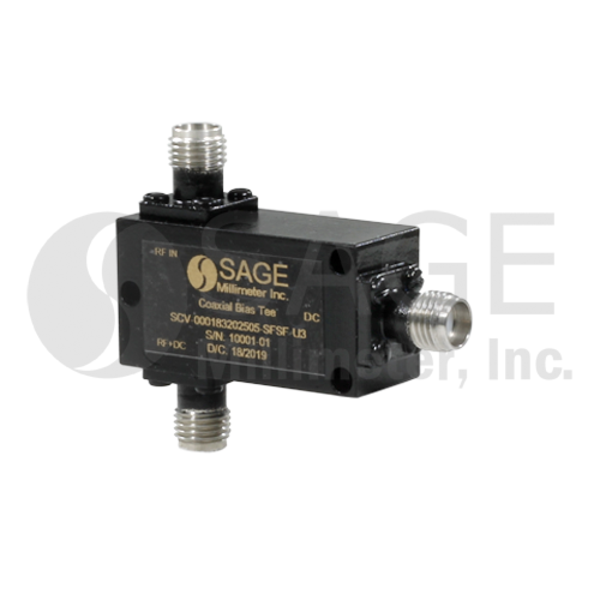

SCV-000183202505-SFSF-U3 is a bias tee that operates from 0.1 MHz to 18 GHz. The bias tee offers 2.0 dB typical insertion loss and 12 dB typical return loss. The bias tee can handle up to +50 VDC bias voltage and 500 mA current. The RF ports are equipped with SMA (F) connectors. Other connector types are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency0.1 MHz
Maximum Frequency18 GHz
Insertion Loss2 dB
Return Loss12 dB
DC Voltage+50 VDC
DC Current500 mA
Power Handling1 W
Input PortSMA Female
Output PortSMA Female
DC PortSMA Female
