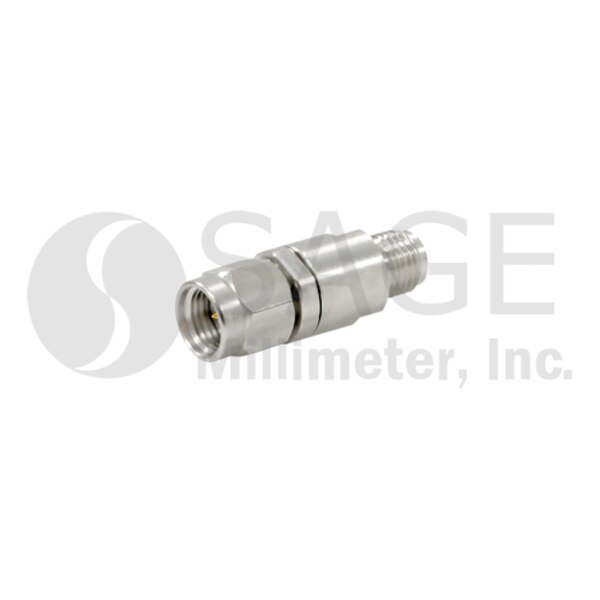

Inner Coaxial DC Block, Limited Run

2.92 mm, 30 MHz to 40 GHz
SKU:SCB-050-KFKM-U6
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model scheduled to be discontinued, so inventory will not be restocked. Read more about Limited Run Products here.

SCB-050-KFKM-U6 is a 2.92 mm coaxial DC block to operate in the frequency range of 0.03 to 40 GHz. The typical insertion loss of the coaxial DC block is 0.6 dB and the DC block has a typical return loss of 18 dB and a characteristic impedence of 50 Ohms, respectively. It is manufactured with 2.92 mm male and female connectors for convenient circuit insertion. The breakdown voltage is +50 Volts.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $485.00
25 - 49 $436.50
50 - 99 $392.85

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency0.03 GHz
Maximum Frequency40 GHz
Return Loss21 dB
Impedance50 Ohms
Insertion Loss0.6 dB
Connector 12.92 mm Female
Connector 22.92 mm Male
